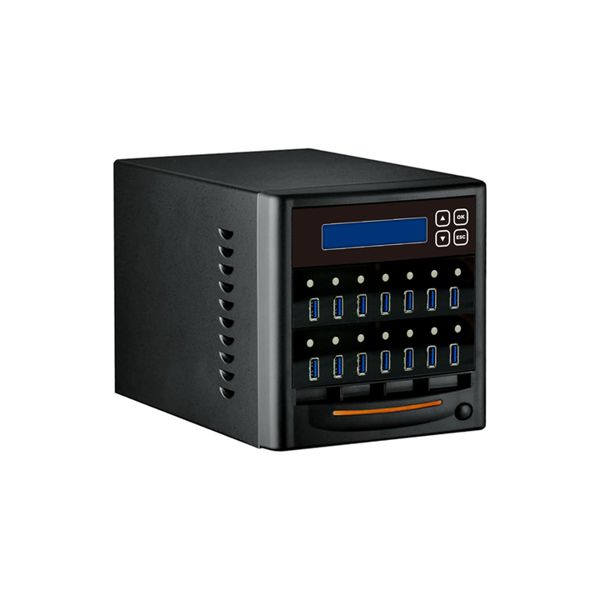

ADR USB 3.1 Duplicator for USB 3.1 Devices and USB Hard Drives
The ADR USB 3.1 USB Stick duplicator comes with the latest technology in transfer speeds. Models available from 7 to 47 target units. The transfer speed is up to 10 GB/min. these units are standalone devices, there is no need for a PC or other software and no risk of virus infection.
The copy process is bit-by-bit therefore there is no danger of incorrect copy results at any time. With the copy & compare function, you can be 100% certain your new target drives are the same as the source.
The unit is operated with the internal Controller with 4 buttons and an LCD display which is very easy to use.
For all our units ADR offers free firmware updates so we make sure there is a high compatibility to new chips and controllers in the market.
The ADR USB 3.1 USB PRO has all the same features as above, plus it comes with Monitoring Tool and LOG Report.
Impeccable Efficiency
ADR USB3.1 Tower duplicator is capable of copying at 10GB/min (Non PC-based). It is specially designed for USB3.1 devices, and the high-speed transmission enables high volume USB Hard Drive duplication with amazing efficiency.
Copy Modes
1. Quick copy (Data & system): Supports Windows (NTFS), FAT16/62/64, and Linux (ext2/3/4)
2. Whole media: Bit-by-bit copy mode which copies exactly the master device exactly. Supports all proprietary and known formats.
Diagnostic Modes:
H2 / H5 Test: Checks the flash’s quality by reading and writing.
Capacity, Bad Sector, Read / Write Speed Filter.
USB3.1 / USB2.0 Signal Detection.
3 Erase Modes:
Quick Erase: Erase HDD index table, and only takes a FEW SECONDS to complete.
Full Erase: Erases the entire Hard Disk Drive.
DoD Erase: Complies with U.S. Department of Defense erasure standards.
| Specifications | Maximum Transfer Speed | 10GB/min. *Actual performance is dependent on USB transfer speeds & number of sticks/HDDs* |
| Capacity | Supports the latest market available capacity Designed support capability over 18TB+. |
|
| Operation Type | Stand-alone, FPGA-based operation (Non PC-based) | |
| Supported Languages | English or Japanese | |
| LCD Display | Backlit Monochrome LCD Display | |
| LEDs | 2 LED (Red/Green) Indicators per port | |
| Control Panel | 4 Push Buttons(▲, ▼, OK, ESC) | |
| Features | Copy Modes | Quick Copy (Systems & Files Copy) |
| Whole Media Copy | ||
| Compare Function | Bit-by-bit data comparison | |
| Diagnostic Modes | H2 Test: Overwrites and Reads (by H2 files) | |
| H5 Test: Overwrites and Reads (by default files of the system) | ||
| Sanitization Modes | Quick Erase, Full Erase, and DoD Erase | |
| Format Functions | Formats device to FAT16 or FAT32 | |
| Compatibilities | Compatible Devices | USB-HDD / USB 3.1 / USB 2.0 / USB 1.1 USB Sticks. |
| Compatible Devices (with required adapter) | SD/MicroSD/CF | |
| Supported Formats | Quick Copy: FAT16/32/64, Windows (NTFS), and Linux (Ext2/Ext3/Ext4) | |
| Whole Media Copy: All Formats, including proprietary formats | ||
| Supported O/S | All (Windows, Mac, Linux, and other stand-alone systems) | |
| Hardware Specifications | Power Supply | 80W~or up (depends on different type of system requirement) |
| Working Temperature | 5°C ~ 45°C (41°F ~ 113°F) | |
| Storage Temperature | -20°C ~85°C (-4°F ~ 185°F) | |
| Working Humidity | 20% ~ 80% | |
| Storage Humidity | 5% ~ 95% | |
| Certifications | FCC, CE, RoHS |
