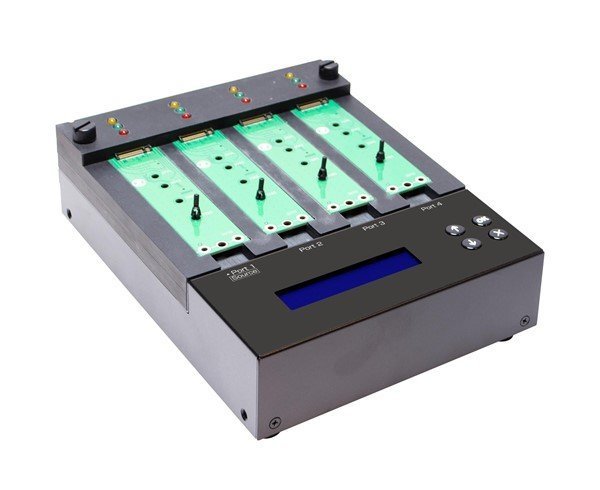

The new generation PCIe Producer ECO duplicator is a professional NVMe M.2 duplicator. It is designed specifically for small volume users and adopts high level FPGA closed platform design, which can eliminate the possibilities of virus infection completely.
We guarantee the highest productivity without speed degradation. It provides four copy modes: quick smart copy, all partitions copy, percentage copy and whole copy that all meet different duplication requirements. The quick copy mode copies data and skips blank area. NTFS, Linux (Ext2/Ext3/Ext4), FAT/FAT32/exFAT and Mac (HFS, HFS+, HFSX) formats can all be supported with quick copy mode.
In addition, the PCIe Producer ECO M.2 duplicator is equipped with different levels of erase functions, Quick Erase, Full Erase, Secure Erase government standards, which can fulfill different levels of PCIe wiping security.
HIGHSPEED Version: Includes SATA adaptor, and speeds up to 18 GB/min.
Specifications:
Maximum Speed Supported |
9 GB/min (1 to 3) HIGHSPEED Version 18 GB/min. 12 GB/min (1 to 7, 11, 23) *Actual performance is dependent on device transfer speeds* |
Supported Formats |
•Quick Copy (System and Files): FAT16/32/64, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac(HFS/HFS+/HFSX)
•Whole Device Copy: All formats, including proprietary formats.
•GPT, MBR, and Advanced Formats.
|
Supported Capacity |
Over 18TB+. |
Supported OS |
All (Windows, Mac, Linux, and other proprietary systems) |
Operation Mode |
Standalone, FPGA-based Operation |
Language |
English, Japanese |
Functions
Copy Modes |
Quick Copy (System and Files) / All Partitions / Whole Device / Percentage Copy |
Compare (Verification) |
Bit-by-bit data comparison from the source device to target device(s). |
Sanitization Modes |
Quick Erase, Full Erase (NIST 800-88), and Secure Erase (NIST 800-88). |
Skip Bad Sectors |
Skip the number of bad sectors during Copy/Compare/Erase. |
Compatibilities
Compatible Device |
Directly compatible with: M.2(NGFF) M Key & B+M Key. |
Compatible Signal |
NVMe, AHCI |
Devices Require Optional Cables or Adapters |
MAC PCIe SSD |
Hardware Specifications
LCD Display |
2x20 Backlit Monochrome LCD Display |
|
LEDs |
3 LED Indicators per Port: Yellow (Power), Green (Pass), Red (Fail) |
|
Control Panel |
4 Push Buttons (▲, ▼, OK, ESC) |
|
Power Requirements |
12V 9A Power Adaptor |
|
Temperature |
Working: 5°C ~ 45°C |
|
Humidity |
Working: 20% ~ 80% |
|
Certifications |
FCC, CE, RoHS, and Reach |
